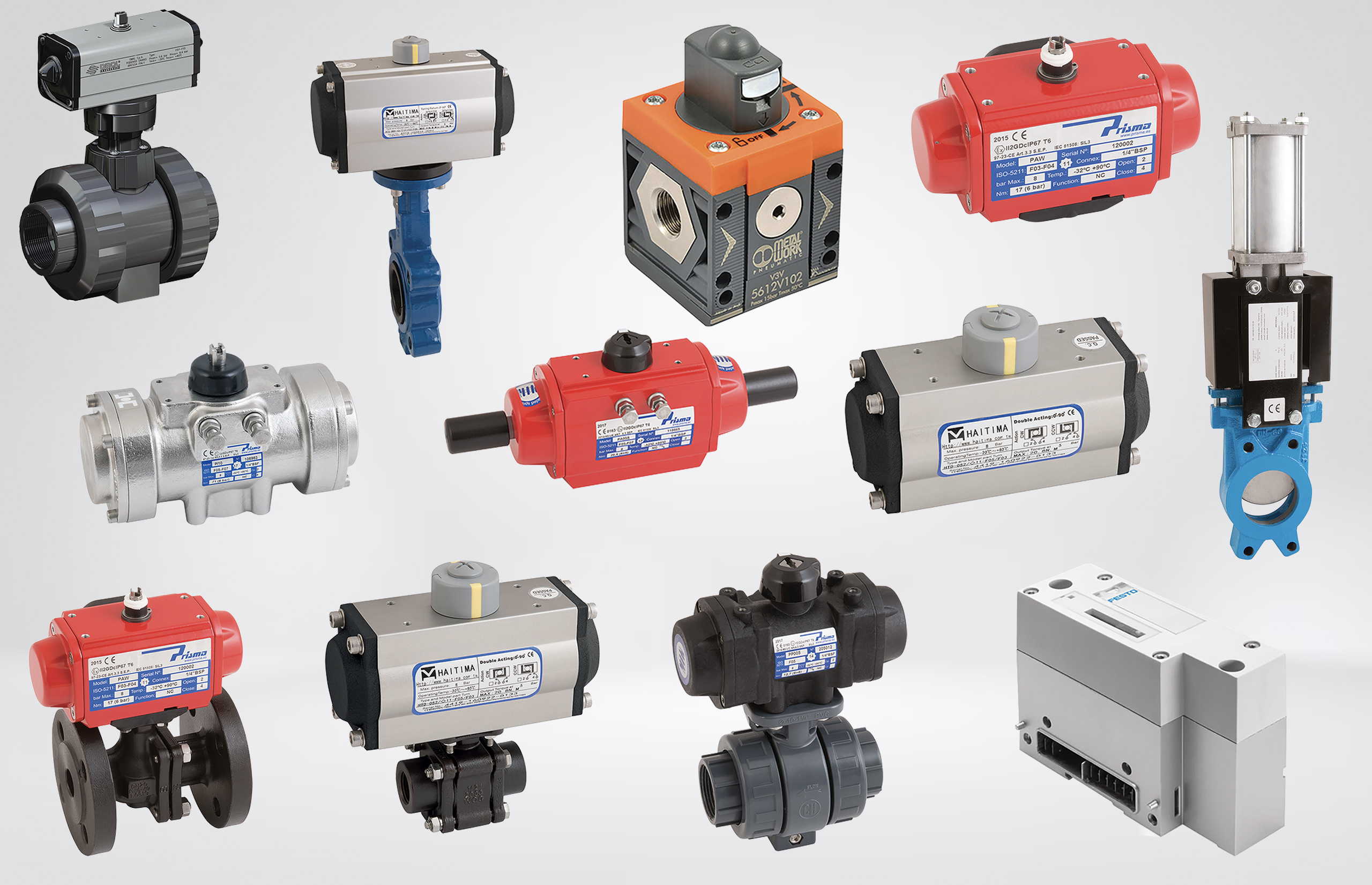

Pneumatic valves are essential components in modern automated systems, providing precise control over compressed air to power industrial machinery, robotics, and manufacturing processes. Their reliability, cost-effectiveness, and energy efficiency make them a preferred choice in industries where automation plays a crucial role.
Without pneumatic valves, automated systems would lack the responsiveness and control needed for efficient performance. From simple functions to complex multi-directional airflow management, these valves serve as the backbone of pneumatic automation.
What Are Pneumatic Valves?
Pneumatic valves are specialised components that regulate the movement of compressed air within an automated system. They function as control points, directing airflow to power actuators, cylinders, and other pneumatic equipment. By opening, closing, or redirecting air pathways, these valves ensure that automated machinery operates with precision and efficiency.
The design and operation of pneumatic valves vary depending on their intended function. Some provide simple on/off control, while others modulate air pressure or flow rates for more complex automation tasks. The type of valve used in a system directly affects its speed, force, and overall reliability.
Types of Pneumatic Valves and Their Applications
Pneumatic valves come in a range of configurations, each designed to perform specific functions within an automated system. The right valve selection ensures precise control over airflow, improving system efficiency and reliability.
Some valves regulate the direction of air movement, controlling actuators and cylinders, while others manage flow rate or pressure to optimise performance. Understanding the different types available is essential for selecting the best valve for a given application.
We will go through the most common types of valves now starting with directional control valves.
Directional Control Valves
Directional control valves manage the movement of compressed air by directing it to specific components within an automated system. These valves determine how and when air reaches actuators, cylinders, and other pneumatic devices, enabling precise motion control.
The design of a directional valve is defined by the number of ports and positions it offers. Some valves provide basic on/off functionality, while others allow for more complex airflow redirection to accommodate multi-step automation processes. The type of valve used depends on whether the system requires single-action or double-action control.
Next, we will examine the different types of directional control valves, starting with 2/2-way valves and their simple on/off operation.
2/2-Way Valves: Simple On/Off Control
2/2 valves are the most straightforward type of directional control valve, designed to either allow or block airflow in a pneumatic system. They have two ports—one for air inlet and one for outlet—and two positions, open or closed. When activated, air flows through the system; when deactivated, the flow stops entirely.
3/2-Way Valves: Single-Acting Cylinder Control
3/2 valves are designed to control single-acting pneumatic cylinders by directing airflow to either extend or retract the piston. These valves have three ports: one for air supply, one for exhaust, and one leading to the actuator. They operate in two positions—one allowing compressed air to enter the cylinder, the other venting it to atmosphere to reset the system.
5/2-Way and 5/3-Way Valves: Double-Acting Cylinder Control
5/2 and 5/3 valves are essential for operating double-acting pneumatic cylinders, which require airflow in both directions to extend and retract. These valves provide greater control over motion and are widely used in automated machinery requiring precise, repeatable movements.
A 5/2 valve has five ports—two for cylinder connection, one for air supply, and two for exhaust. It operates in two positions, switching airflow between the cylinder ports to extend and retract the piston. This configuration is ideal for high-speed automation where rapid, controlled movement is necessary.
A 5/3 valve functions similarly but offers an additional neutral position. Depending on the design, this middle position can either stop airflow, vent pressure, or hold the actuator in place. This added flexibility is beneficial in applications requiring position holding or gradual movement control.
Flow Control Valves
Flow control valves regulate the speed and force of pneumatic actuators by adjusting the rate of compressed air passing through a system. Unlike directional control valves, which manage airflow direction, these valves fine-tune performance by restricting or allowing air to flow at a controlled rate.
By adjusting the airflow, these valves ensure smooth and precise movement, preventing excessive force or sudden jolts that could lead to wear and tear. They are commonly used in conveyor systems, robotic arms, and automated assembly lines where controlled motion is essential for efficiency and safety.
Optimising airflow also helps reduce energy consumption by ensuring that only the necessary amount of compressed air is used. However, maintaining safe operating conditions requires additional pressure regulation.
Pressure Relief and Regulating Valves for Safe Operation
Pressure relief and regulating valves play a critical role in maintaining the stability and safety of pneumatic systems. These valves prevent overpressure conditions that could damage components, ensuring equipment operates within specified limits.
Pressure relief valves automatically release excess air when system pressure exceeds a set threshold. This prevents potential failures, particularly in high-demand applications where fluctuations in air supply can occur.
Pressure regulating valves maintain a consistent pressure level by adjusting the airflow entering the system. By stabilising pressure, these valves improve efficiency, protect sensitive components, and extend the lifespan of pneumatic equipment.
Pneumatic Valves in Key Industries
Pneumatic valves are integral to automation across multiple industries, each with unique requirements for precision, efficiency, and reliability. Their ability to control airflow and pressure makes them a versatile solution for a wide range of applications, from heavy-duty industrial machinery to delicate medical equipment.
Different sectors depend on pneumatic control to enhance productivity and maintain consistency in automated processes. Whether used for high-speed assembly lines, complex robotics, or sanitary food production, these valves ensure smooth and controlled operations.
Manufacturing and Robotics
Pneumatic valves are essential in manufacturing and robotics, these valves control actuators and cylinders that power automated assembly lines, robotic arms, and packaging systems, ensuring smooth and repeatable operations. Fast response times and reliable airflow regulation allow manufacturers to maintain high output while reducing downtime caused by mechanical failures.
In robotic applications, pneumatic valves enable controlled motion, whether for gripping, lifting, or rotating components. Their ability to provide consistent force and speed is crucial in environments that demand accuracy, such as electronics assembly or metal fabrication.
Automotive Assembly Lines
Pneumatic valves are critical to the efficiency of automotive assembly lines, where precision and speed are essential for high-volume production. These valves control the movement of robotic arms, presses, and welding equipment, ensuring that each stage of vehicle manufacturing operates smoothly and consistently.
From assembling body panels to installing interior components, pneumatic systems provide the controlled force needed for repetitive and high-speed tasks. The reliability of these valves reduces the risk of production delays, helping manufacturers maintain consistent output and quality standards.
Food and Beverage Processing
Pneumatic valves are widely used in food and beverage processing, where precise control and hygienic operation are essential. These valves regulate the movement of compressed air in automated filling, packaging, and sorting systems, ensuring accurate portioning and consistent production flow.
Hygiene is a top priority in this industry, and pneumatic systems offer a clean and contamination-free solution. Unlike hydraulic alternatives, which use oil-based fluids, air-powered valves eliminate the risk of leakage affecting food products. Many pneumatic components are also available with food-grade materials to meet strict industry regulations.
Pharmaceutical and Medical Applications
Pneumatic valves play a vital role in pharmaceutical manufacturing and medical equipment, where precision, sterility, and reliability are critical. These valves regulate airflow in automated dosing, packaging, and fluid-handling systems, ensuring consistent production of medications and medical devices.
In sterile environments, pneumatic control offers a contamination-free solution. Since compressed air does not introduce harmful residues, it is ideal for applications such as pill coating, liquid dispensing, and cleanroom packaging. In medical devices, pneumatic valves are used in respiratory equipment, laboratory automation, and surgical tools, providing precise air control for life-saving applications.
Construction and Heavy Machinery
Pneumatic valves are essential in construction and heavy machinery, where robust and reliable air control is needed for demanding applications. These valves power pneumatic tools, lifting systems, and automated controls in excavators, cranes, and drilling equipment, ensuring smooth and controlled operation in tough environments.
Unlike hydraulic systems, pneumatic components offer a lightweight and cleaner alternative, reducing maintenance requirements while delivering consistent performance. Their ability to withstand dust, moisture, and fluctuating pressures makes them ideal for rugged job sites where durability is a priority.
Why Choose Hoses Direct for Pneumatic Valves?
Sourcing high-quality pneumatic valves is essential for maintaining efficiency and reliability in automated systems. Hoses Direct provides an extensive selection of industrial-grade pneumatic valves designed to meet the demands of various industries, from manufacturing and automotive to food processing and construction.
With a strong focus on quality and performance, our range includes directional control valves, flow regulators, and pressure relief solutions to suit both simple and complex automation needs. Whether you require valves for high-speed production lines or heavy-duty applications, we offer reliable products from trusted manufacturers.
Beyond product availability, expert support is key to ensuring the right components are selected for each application. At Hoses Direct, our team provides expert guidance to help businesses select the most suitable valves for their specific applications, ensuring seamless integration with existing pneumatic systems.
In addition to expert support, we offer fast UK-wide delivery, allowing businesses to minimise downtime and keep operations running smoothly. With a large stock of industrial-grade pneumatic valves ready for dispatch, customers can access high-quality components without long lead times.
Reliable products, technical expertise, and efficient delivery make Hoses Direct a trusted supplier of pneumatic solutions.
Summary
Pneumatic valves are at the core of automated systems, providing precise control over airflow, pressure, and actuation in a wide range of industries. From manufacturing and robotics to construction and pharmaceuticals, these valves ensure efficiency, reliability, and safety in critical applications. Selecting the right valve is essential for optimising performance, reducing energy consumption, and extending the lifespan of pneumatic equipment.
Hoses Direct offers a comprehensive range of industrial-grade pneumatic valves, supported by expert advice and fast UK-wide delivery. Whether for high-speed production lines or heavy-duty machinery, businesses can rely on our quality products and technical expertise to keep their systems running efficiently.
