A hydraulic flow switch is a crucial component in any hydraulic system, ensuring that fluid flow remains within the required parameters to maintain efficiency and protect equipment. Choosing the right flow switch involves understanding its role, key selection factors, and the specific advantages of different types. The wrong choice can lead to inaccurate readings, reduced system performance, or even critical failures.
Selecting the best flow switch requires careful consideration of flow rate, pressure ratings, material durability, and sensitivity. In this guide, we’ll cover the fundamentals of hydraulic flow switches, explore the factors that influence selection, and discuss the different types available.

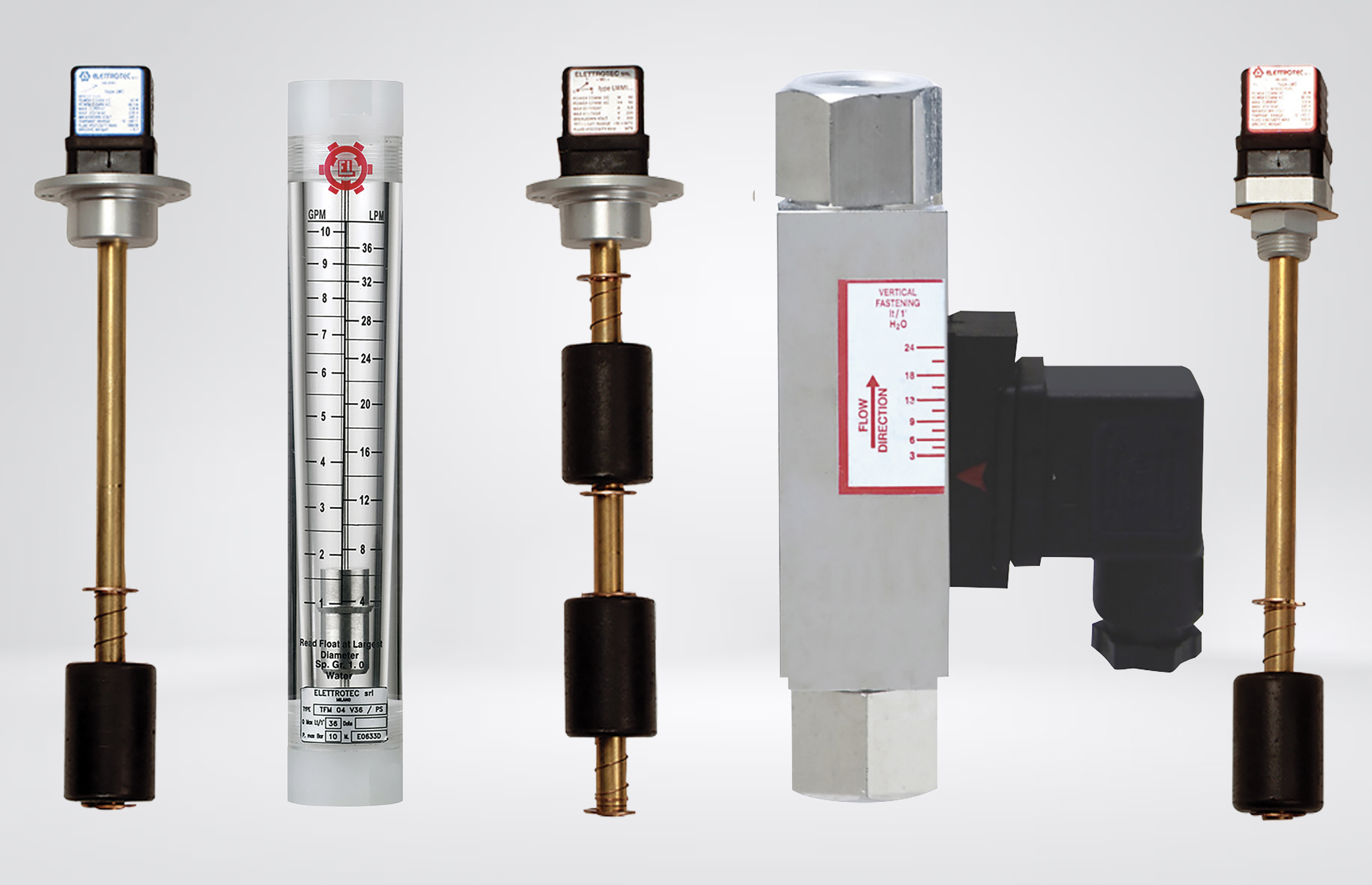

What Is a Hydraulic Flow Switch?
A hydraulic flow switch is a device used to monitor the movement of fluid within a hydraulic system. It operates by sensing fluid movement and responding when the flow reaches a set threshold. Inside the switch, a mechanical or electronic component detects changes in flow rate and triggers an electrical signal or mechanical action. This signal can be used to activate pumps, sound alarms, or shut down machinery to prevent damage.
The detection method varies depending on the switch type. Some use a piston or paddle that moves in response to fluid pressure, while others rely on thermal sensors or electronic monitoring. The choice of detection mechanism impacts the switch’s sensitivity, accuracy, and suitability for different hydraulic applications.
A correctly installed flow switch ensures that a system runs smoothly by preventing low flow conditions that could lead to overheating, pressure drops, or inefficient performance.
Common Applications of Hydraulic Flow Switches in Industry
Hydraulic flow switches are widely used across industries where fluid control is critical to system performance and safety. In manufacturing, they regulate coolant flow in CNC machines, preventing overheating and ensuring precision machining.
In construction and heavy equipment, they monitor hydraulic circuits in excavators, loaders, and cranes, protecting components from damage due to insufficient lubrication or pressure fluctuations.
In the transportation sector, these switches play a key role in hydraulic braking and power steering systems, ensuring reliable operation under varying load conditions.
Waste management and utilities also rely on flow switches for monitoring fluid movement in pumping stations and filtration systems, where maintaining consistent flow is crucial to operational efficiency.
Key Factors to Consider When Choosing a Hydraulic Flow Switch
Each application has unique demands, making it essential to select a switch suited to the system’s flow rate, pressure, and environmental conditions. In this section we’ll examine the key factors to consider when choosing the right hydraulic flow switch for your specific system requirements.
Flow Rate Requirements: Matching the Switch to Your System
Selecting the right hydraulic flow switch starts with understanding your system’s flow rate. Each switch is designed to operate within a specific flow range, so choosing one that doesn’t match your system can lead to inaccurate readings or operational failures.
If the switch is rated for a flow higher than what your system produces, it may not activate when needed, leaving components vulnerable to low-flow conditions. Conversely, if the switch is designed for lower flow rates, it could trigger false alarms or unnecessary system shutdowns. Flow characteristics, including whether the system has steady or variable flow, also play a role in determining the best switch type.
Pressure Ratings and System Compatibility
A hydraulic flow switch must be able to withstand the pressures within your system without compromising performance or durability. Each switch is designed to operate within a specific pressure range, and exceeding this limit can lead to mechanical failure, inaccurate readings, or leaks.
In high-pressure applications, such as hydraulic power units and heavy machinery, selecting a switch with a robust pressure rating is critical to ensuring reliability. Low-pressure systems, on the other hand, require switches that remain sensitive enough to detect minimal flow variations without unnecessary triggering.
It’s also essential to consider pressure fluctuations within the system. Some applications experience sudden surges that could impact the longevity of a switch if it isn’t rated for peak pressures. Understanding these factors ensures the switch integrates seamlessly with your system.
Material Construction: Ensuring Durability in Harsh Environments
The material composition of a hydraulic flow switch directly impacts its longevity and reliability, particularly in demanding industrial environments. Hydraulic systems often operate under extreme conditions, including high pressures, temperature fluctuations, and exposure to corrosive fluids. Selecting the right materials ensures the switch remains functional without premature wear or failure.
Brass and stainless steel are commonly used for flow switch housings due to their strength and corrosion resistance. Stainless steel is particularly suited for applications involving aggressive fluids or outdoor environments where exposure to moisture and contaminants is a concern. For systems handling specialised hydraulic fluids, compatibility with seals and internal components is just as important as the housing material.
Response Time and Sensitivity: Choosing the Right Performance Level
A hydraulic flow switch must respond quickly and accurately to changes in flow conditions to ensure system efficiency and protection. Response time refers to how fast the switch detects a flow variation and triggers an action, while sensitivity determines how small a change must be before the switch activates.
In high-speed hydraulic systems, a switch with a delayed response can lead to a number of potential problems that can end up being costly and causing unnecessary maintenance. Applications that require precise control, such as hydraulic braking or cooling circuits, benefit from switches with high sensitivity to detect even minor fluctuations. However, excessive sensitivity in turbulent flow conditions can cause false triggers, leading to unnecessary alarms or shutdowns.
Finding the right balance between response speed and sensitivity is a balancing act that the expert team at Hoses Direct can help with to ensure the switch integrates effectively into your system without causing disruptions.
Electrical and Mechanical Compatibility
A hydraulic flow switch must be fully compatible with the system’s electrical and mechanical setup to ensure seamless integration and reliable operation. The switch’s electrical output needs to match the control system it is interfacing with, whether it’s a simple on/off relay, a programmable logic controller (PLC), or a more advanced automation system. Voltage requirements and connection types must also align with existing components to avoid wiring issues or signal interference.
Mechanically, the switch must fit within the system’s piping configuration. Thread type, connection size, and mounting orientation all play a role in ensuring a secure installation. Mismatched fittings can lead to leaks, pressure losses, or restricted flow, reducing overall system efficiency.
Types of Hydraulic Flow Switches and Their Advantages
In this next section we’ll explore the different types of hydraulic flow switches that are available and their advantages in various applications starting with piston operated flow switches.
Piston-Operated Flow Switches: Ideal for Low-Flow Applications
Piston-operated flow switches are designed for systems where precise monitoring of low flow rates is essential. Inside the switch, a spring-loaded piston moves in response to fluid flow, triggering an output when the flow reaches a set threshold. This design makes them particularly effective in hydraulic circuits with minimal flow, such as lubrication and cooling systems.
These switches offer a compact and durable solution, making them suitable for confined spaces and harsh operating environments. Their internal components are typically resistant to wear, ensuring long-term reliability in continuous operation. However, they are best suited for clean fluid applications, as debris or contaminants can affect piston movement.
Paddle-Type Flow Switches: Balancing Cost and Performance
Paddle-type flow switches provide a versatile and cost-effective solution for monitoring flow in hydraulic systems. These switches use a hinged paddle positioned in the fluid stream, which moves in response to flow changes. When the flow reaches a set threshold, the paddle activates a mechanical or electronic sensor to trigger a response.
One of their key advantages is their ability to handle a wider range of flow rates compared to piston-operated switches. They are commonly used in larger hydraulic circuits, including industrial cooling, filtration, and process automation, where moderate flow sensitivity is required. Their simple design allows for easy installation and maintenance, making them a practical choice for many applications.
However, paddle-type switches may not be as precise in detecting very low flow rates, as they rely on sufficient force to move the paddle.
Thermal Flow Switches: When Precision Matters
Thermal flow switches provide highly accurate monitoring in applications where precise flow detection is critical. Unlike mechanical switches, they operate without moving parts, using temperature sensors to detect changes in fluid flow. A heating element warms the sensor, and as fluid moves past it, heat is carried away. The rate of heat dissipation determines the flow status, triggering a response when thresholds are met.
These switches excel in systems where mechanical wear or contamination could compromise reliability. They are particularly useful in hydraulic systems that handle abrasive or viscous fluids, as they are less affected by debris compared to paddle or piston-operated models. Their sensitivity also makes them ideal for applications requiring early flow detection, such as cooling circuits and lubrication systems.
While thermal flow switches offer superior accuracy, they may have longer response times compared to direct mechanical detection methods.
Why Quality Matters: Avoiding System Failures and Downtime
Selecting a high-quality hydraulic flow switch is essential to maintaining system reliability and preventing costly downtime. Poorly manufactured or incompatible switches can lead to inaccurate flow readings, false triggers, or even system failures. A malfunctioning switch may fail to detect critical flow changes, resulting in overheating, pressure loss, or damage to hydraulic components.
Investing in a well-engineered switch ensures long-term performance, reducing the risk of unexpected breakdowns and the need for frequent replacements.
Hoses Direct provides high-quality hydraulic flow switches that meet industry standards while offering competitive pricing. With a comprehensive range of mechanical and electronic flow switches, we cater to both standard and specialist hydraulic systems. Our products are sourced from trusted manufacturers, ensuring durability, accuracy, and compliance with industry regulations.
Beyond supplying high-quality components, we offer expert technical support to help customers select the right switch for their application. Whether you need guidance on flow rate compatibility, pressure ratings, or installation requirements, our team provides practical advice to ensure seamless integration into your system.
Summary
Selecting the right hydraulic flow switch is essential for maintaining efficiency, preventing equipment failures, and ensuring seamless system operation. Factors such as flow rate, pressure rating, material construction, and response time all play a role in determining the best switch for a given application. Understanding the differences between piston, paddle and thermal switches helps in making an informed decision based on system requirements.
Choosing a high-quality switch from a reputable supplier such as Hoses Direct ensures long-term reliability and compliance with industry standards as well as access to expert guidance and a wide range of hydraulic flow switches, helping businesses find the right solution at competitive prices.
