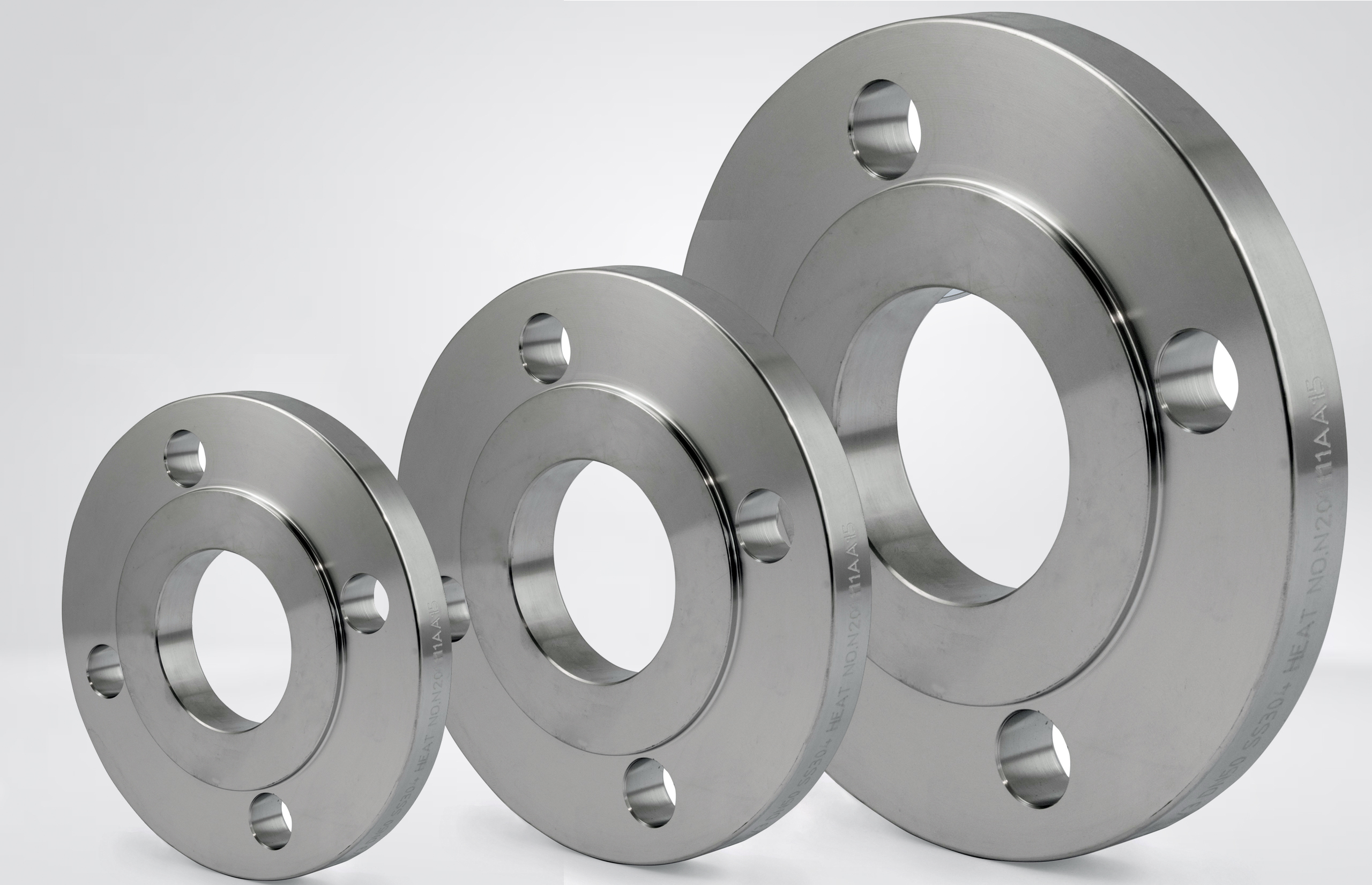

Pipe flanges are critical components in industrial piping systems, providing a secure and efficient way to connect pipes, valves, and equipment. Accurate flange measurement is essential for ensuring compatibility, preventing leaks, and maintaining the integrity of high-pressure and high-temperature systems. A miscalculated flange size can lead to costly downtime, improper sealing, or safety hazards.
To measure pipe flanges correctly, it’s important to understand the different types available and their specific applications. The first section will cover the most common types of pipe flanges and how they are used in various industries.
Common Types of Pipe Flanges
Different types of pipe flanges are used across industries, depending on factors such as pressure rating, installation requirements, and material compatibility. Selecting the right flange type ensures a secure, efficient, and durable connection within a piping system.
Weld Neck Flanges
Weld neck flanges feature a long, tapered hub that is welded directly to the pipe. This design provides exceptional strength and reduces stress concentration, making them ideal for high-pressure and high-temperature applications, such as in oil and gas or power generation industries. Their smooth transition from flange to pipe minimises turbulence, ensuring optimal flow efficiency.
Slip-On Flanges
Slip-on flanges are designed to slide over the pipe before being welded in place. They require both an inside and outside weld, ensuring a secure connection. These flanges are commonly used in low to medium-pressure applications where quick installation and cost-effectiveness are priorities. Their ease of alignment makes them a practical choice for industries such as water treatment and general manufacturing.
Unlike weld neck flanges, slip-on flanges do not have a tapered hub, which makes them less resistant to high-pressure conditions. However, they remain a popular choice for non-critical systems where simplicity and affordability are key.
Blind Flanges
Blind flanges are solid, circular plates used to close off the end of a piping system or pressure vessel. Unlike other flange types, they have no bore, making them ideal for applications where future expansion, maintenance, or system modifications may be required. They are commonly used in industries such as oil and gas, chemical processing, and power generation, where secure system isolation is essential.
These flanges must be carefully selected based on pressure ratings to withstand system loads effectively. Their strength allows them to endure high pressures, making them a reliable solution for sealing pipelines.
Threaded Flanges
Threaded flanges feature internal threads that allow them to be screwed directly onto pipes without the need for welding. This design makes them particularly useful in applications where welding is impractical, such as in explosive environments or temporary piping setups. They are commonly used in low-pressure systems, including water distribution and compressed air lines.
Although threaded flanges provide a simple installation method, they are generally not recommended for high-pressure or high-temperature applications due to the risk of leakage at the threaded connection. However, when used with the correct sealing techniques, they offer a secure and efficient solution for specific applications.
Lap Joint and Socket Weld Flanges
Lap joint flanges are designed for use with a corresponding stub end, allowing the flange to rotate freely. This makes them particularly useful in systems requiring frequent dismantling or alignment adjustments, such as in food processing and chemical industries. Their design reduces stress on the pipe, making them ideal for low-pressure applications where flexibility is needed.
Socket weld flanges, on the other hand, are designed for small-diameter, high-pressure pipelines. The pipe is inserted into a recessed area of the flange before being welded, creating a strong and smooth flow transition. This makes them well-suited for hydraulic and steam lines where a secure, leak-resistant connection is essential.
How to Measure Pipe Flanges Accurately
Precise flange measurements are essential to ensure compatibility with existing piping systems and to prevent leaks or misalignment. Measuring a pipe flange correctly involves identifying key dimensions, including the outer diameter, bolt circle diameter, and number of bolt holes. Incorrect measurements can lead to costly delays, equipment failure, or the need for unnecessary modifications.
Each flange type has specific dimensional requirements based on industry standards, such as ASME, ANSI, and DIN. Understanding these standards is crucial for selecting the correct replacement flange or ensuring a new installation meets system specifications.
Key Flange Dimensions to Consider
Accurate flange measurement requires understanding the critical dimensions that determine compatibility with a piping system. Each measurement plays a role in ensuring a secure fit, proper bolt alignment, and effective sealing. Failure to measure correctly can result in misalignment, leaks, or the inability to install the flange properly.
Flange Outer Diameter (OD)
The outer diameter is the total width of the flange, measured across its widest point. This dimension is essential for ensuring the flange fits within the system and aligns correctly with other components. Different flange classes and standards will have varying outer diameters, even for the same nominal pipe size.
Bolt Circle Diameter (BCD)
The bolt circle diameter, also known as the pitch circle diameter (PCD), is the distance between the centres of opposite bolt holes. This measurement is critical for ensuring proper bolt alignment, as incorrect BCD sizing can prevent secure fastening and lead to leaks or mechanical failures.
Number and Size of Bolt Holes
Every flange has a specific number of bolt holes, evenly spaced around its circumference. Measuring both the number and diameter of these holes is essential for selecting the correct flange or gasket. Even a minor mismatch in bolt hole placement can prevent a proper seal, leading to operational issues.
Flange Thickness and Hub Height
The thickness of the flange affects its pressure rating and ability to withstand mechanical stress. Thicker flanges are typically used in high-pressure applications to prevent warping or cracking. For certain flange types, the hub height—the raised section between the bore and the outer surface—must also be considered, as it influences the structural strength of the connection.
Raised Face vs. Flat Face vs. Ring-Type Joint (RTJ) Surfaces
Flanges come with different sealing surfaces, which determine the type of gasket required. Raised face (RF) flanges have a slightly elevated sealing surface for improved gasket compression. Flat face (FF) flanges have a smooth surface, often used in low-pressure applications. Ring-type joint (RTJ) flanges feature a machined groove for a specialised metal gasket, commonly used in high-pressure, high-temperature systems.
How to Identify the Correct Flange Standard
Selecting the right flange standard is crucial for ensuring compatibility with existing piping systems. Flanges are manufactured to meet specific industry standards that dictate their dimensions, pressure ratings, and material specifications. Using an incorrect standard can lead to issues with bolt alignment, sealing effectiveness, and overall system integrity.
ASME, ANSI, DIN, and BS Standards
Flanges are classified under different global standards. ASME (American Society of Mechanical Engineers) and ANSI (American National Standards Institute) are widely used in the UK for high-pressure applications, particularly in industrial and petrochemical sectors. DIN (Deutsches Institut für Normung) and BS (British Standards) flanges are more common in European and legacy systems, often found in older installations or specialised industries. Understanding these standards ensures the correct fit and compatibility with existing components.
Pressure Ratings and Flange Classes (150, 300, 600, etc.)
Flanges are rated according to their ability to withstand pressure at a given temperature. These ratings, known as flange classes, range from Class 150 to Class 2500 under ASME standards, with higher numbers indicating greater pressure tolerance. DIN and BS standards use nominal pressure (PN) ratings, such as PN10, PN16, and PN40. Selecting the correct class prevents failures due to over-pressurisation or material limitations.
Once the correct flange standard is determined, sourcing a high-quality product from a reliable supplier becomes the next priority. In the following section, we’ll explore why Hoses Direct is the ideal choice for sourcing pipe flanges in the UK.
Why Choose Hoses Direct for Your Flanges?
Selecting the right supplier for pipe flanges is just as important as choosing the correct specifications. At Hoses Direct, we provide a wide selection of high-quality flanges designed to meet industry standards, ensuring compatibility with ASME, ANSI, DIN, and BS specifications. Our focus is on delivering durable, precision-engineered flanges that offer reliability across a range of industrial applications.
With years of experience supplying the construction, manufacturing, and utilities sectors, we understand the critical role flanges play in system integrity. Our expert team is available to assist with selecting the correct flange type, pressure rating, and material to suit your specific needs.
Summary
Accurate pipe flange measurement is essential for ensuring a secure, leak-free connection that meets industry standards. Understanding key dimensions such as outer diameter, bolt circle diameter, and pressure ratings helps prevent misalignment and costly installation errors. Selecting the correct flange type and standard ensures compatibility with existing piping systems, reducing the risk of performance issues.
