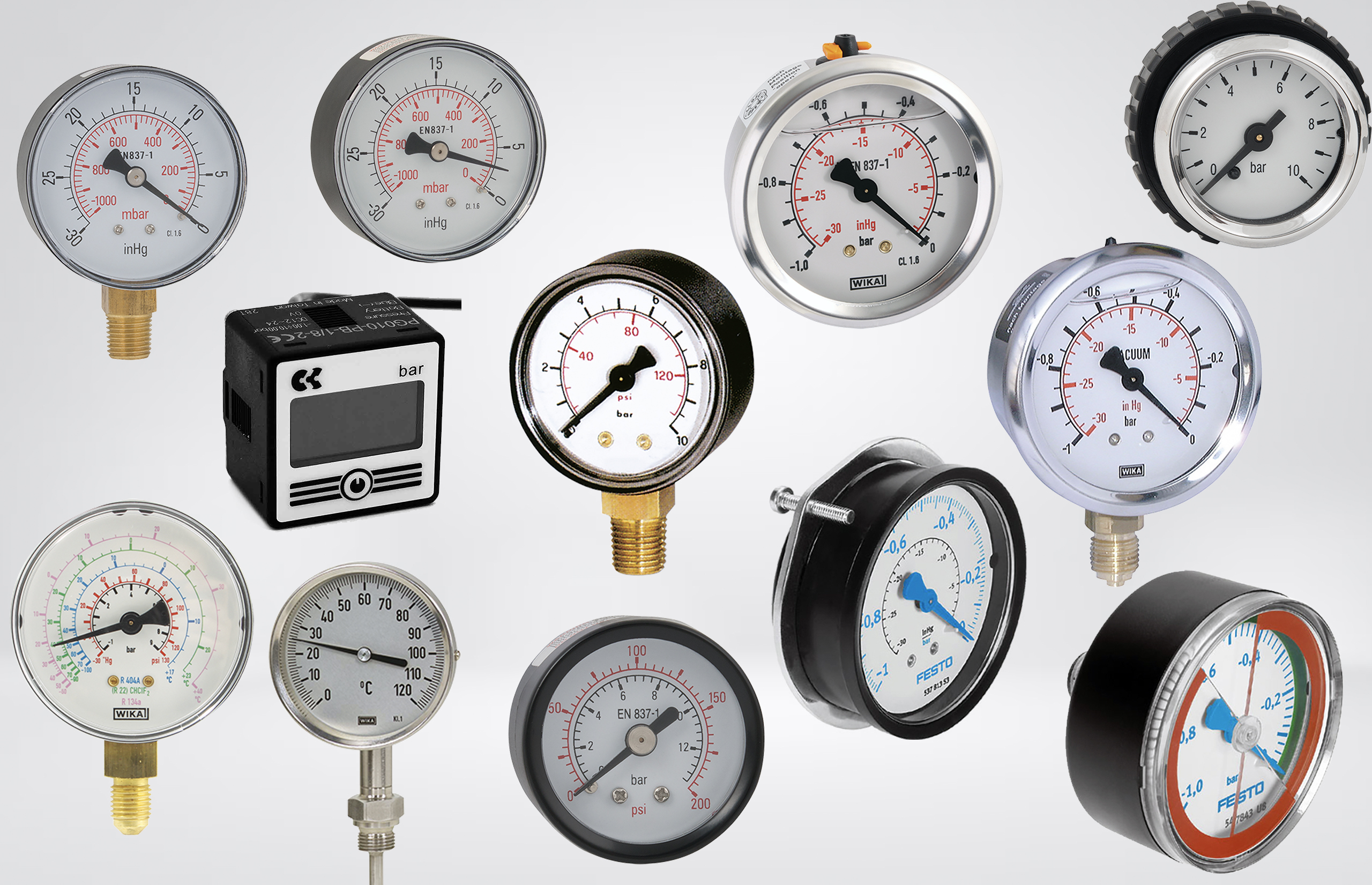

Accurate pressure measurement is essential in industrial and scientific applications, particularly for vacuum systems. A vacuum gauge is a specialised instrument designed to measure pressure levels below atmospheric pressure, ensuring systems function efficiently and safely. From industrial manufacturing to laboratory research, these devices are crucial for monitoring and controlling pressure within sealed systems.
Understanding Vacuum Gauges: An Essential Measurement Tool
Vacuum gauges provide real-time pressure data across various industries, ensuring efficiency, safety, and consistency. Without accurate readings, vacuum-dependent processes can suffer from inefficiencies, product defects, or equipment failure.
How Does a Vacuum Gauge Work?
Vacuum gauges operate by detecting pressure variations within a system and converting this data into readable values. The method used depends on the type of gauge, with some relying on mechanical movement, others on thermal conductivity, and some using ionisation techniques for extremely low pressures.
Each type of gauge is suited to specific applications and pressure ranges. Below, we explore different vacuum gauge technologies.
Mechanical Vacuum Gauges
Mechanical vacuum gauges measure pressure using physical displacement within a sealed system. They rely on components such as diaphragms, tubes, or bellows that deform in response to pressure changes. These gauges are widely used in HVAC, automotive, and industrial applications where durability and reliability are essential.
Bourdon Tube Vacuum Gauges
Bourdon tube gauges use a coiled metal tube that changes shape as pressure varies. This movement is mechanically translated into a pressure reading. These gauges are durable and well-suited for industrial applications but lack the precision required for very low-pressure measurements.
Diaphragm Vacuum Gauges
Diaphragm gauges use a thin membrane that flexes in response to pressure changes. They offer higher sensitivity than Bourdon tube gauges, making them ideal for laboratory settings, medical applications, and precision industrial processes.
Capsule and Bellows Gauges
Capsule and bellows gauges feature expandable chambers that respond to pressure variations. These designs provide improved sensitivity for low-pressure measurements, making them valuable in scientific research and delicate industrial processes.
While mechanical gauges are reliable for many applications, they have limitations at very low pressures. For greater accuracy, thermal conductivity gauges are used.
Thermal Conductivity Vacuum Gauges
Thermal conductivity vacuum gauges measure pressure by detecting heat transfer within a vacuum system. These gauges use a heated element and monitor how quickly heat dissipates. As pressure decreases, fewer gas molecules are available to conduct heat, allowing precise measurement at lower pressures.
Pirani Gauges
Pirani gauges use a heated filament within a vacuum chamber. As gas molecules collide with the filament, they transfer heat away, causing a temperature change that correlates with pressure. These gauges are commonly used in industrial processes, coating applications, and vacuum furnaces.
Thermocouple Vacuum Gauges
Thermocouple gauges function similarly to Pirani gauges but include a thermocouple sensor for enhanced accuracy. They provide stable, continuous vacuum measurement and are widely used in refrigeration systems and laboratory environments.
For ultra-low pressure applications, ionisation vacuum gauges offer the highest precision.
Ionisation Vacuum Gauges
Ionisation vacuum gauges measure extremely low pressures by ionising gas molecules and detecting the resulting electrical current. These gauges are used in semiconductor manufacturing, space simulation chambers, and high-energy physics research.
Cold Cathode Gauges
Cold cathode gauges create a plasma discharge in a magnetic field to ionise gas molecules, generating an electrical current that correlates with pressure. They are ideal for ultra-high vacuum environments, such as particle accelerators and space research.
Hot Cathode Gauges
Hot cathode gauges use a heated filament to emit electrons, ionising gas molecules to measure pressure. They offer superior sensitivity for extreme vacuum conditions but require careful maintenance due to filament wear.
Common Industries That Use Vacuum Gauges
Vacuum gauges play a vital role across multiple industries:
- Manufacturing – Used in vacuum forming, packaging, and leak detection.
- Semiconductors – Essential for chip fabrication where precision is critical.
- Automotive – Important for engine testing, fuel diagnostics, and brake performance.
- Laboratories & Research – Used in experiments, space simulations, and particle accelerators.
- Medical Applications – Applied in sterilisation equipment and vacuum-assisted procedures.
Where to Buy High-Quality Vacuum Gauges
Choosing a reliable vacuum gauge ensures accurate pressure measurement and system efficiency. Industrial users, laboratories, and manufacturers require gauges that offer durability, precision, and compatibility with their applications. Selecting a trusted supplier helps avoid issues with calibration and long-term performance.
Hoses Direct offers a comprehensive selection of vacuum gauges, ensuring customers receive high-quality measurement tools suited to their specific needs.
Why Choose Hoses Direct for Your Vacuum Gauge Needs?
Hoses Direct supplies a wide range of mechanical and thermal conductivity vacuum gauges designed for industrial, laboratory, and commercial applications. Our products are backed by expert technical support, competitive pricing, and fast UK-wide delivery.
Whether you need a rugged mechanical gauge for industrial use or a precision gauge for ultra-high vacuum systems, we provide reliable solutions tailored to your requirements.
Summary
Vacuum gauges are essential for measuring pressure in industrial, scientific, and commercial applications. Understanding the differences between mechanical, thermal conductivity, and ionisation gauges ensures the right choice for each system. Factors such as accuracy, durability, and system compatibility are key considerations.
