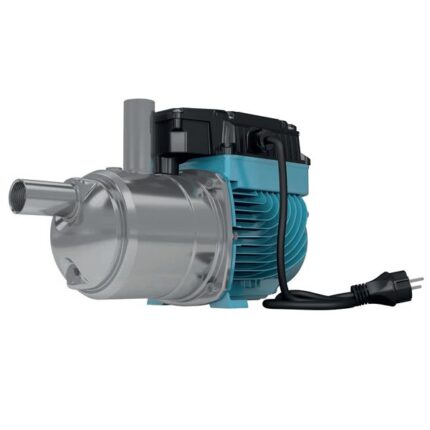

Calpeda Mèta water pressure booster system is a compact ‘plug and play’ pumping solution for water pressurisation. Calpeda Mèta booster pump is a ready to use ‘plug and play’ unit that requires no additional components for it’s installation. The pumping unit has a self priming pump with a highly efficient asynchronous motor, built in frequency converter and pressure vessel, a pressure sensor on the discharge outlet, and a non return valve on the inlet suction side.
Mèta water pressure booster set by Calpeda is suitable for increasing water pressure to showers, taps, garden taps, appliances and for irrigation systems using rainwater harvesting. Dependant on your requirements, the Mèta-S is best suited to these types of applications within a clean water, domestic setting, whereas the Mèta-L with increased flow rate is suitable for clean water domestic, commercial and agricultural settings.
The key advantages of this water booster pumps built-in variable speed drive is a constant, reliable water pressure based on demand. As a result of the variable speed drive and asynchronous motor, this Calpeda booster pump has a high energy efficiency rating – EEI 0.42 and is much more efficient than traditional water pressure booster solutions.
The Calpeda Mèta self priming, pressure boosting pump has some built-in protective features. If the water supply fails during operation, the booster pump automatically shuts down to protect against dry running, one of the biggest causes of water pump failure.
Features:
– Constant pressure regardless of demand
– Up to 450Wh less energy consumption compared conventional units
– Very quiet operation
– Built-in pressure vessel
– Dry run protection with auto re-start
– Detects the presence of air in the pump casing
– Overload control and overheating motor control
– Power supply control
– Detects small water leaks in the system
Specifications:
– Maximum liquid temperature: 35°C
– Maximum operating pressure: 4.7 bar
– Insulation class: F
– Energy saving: 450Wh
– Energy efficiency index: EEI 0.42
