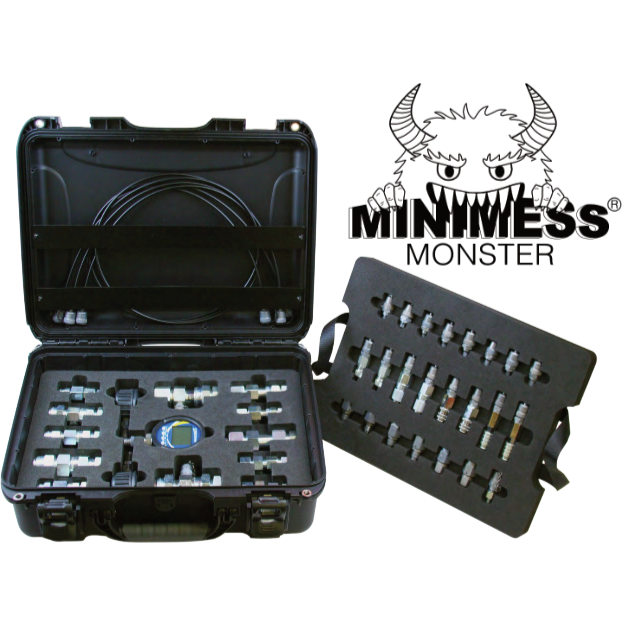

Minimess® Monster Agri, Construction & Heavy Plant Pressure Test Kit. Please add to basket kit & 3 pressure gauges required.
The Minimess® monster test kit comes with a huge range of test point adaptors to Minimess® 1620 series connection, allowing for a simple and safe tool-free connection to almost any test point variant fitted to mobile hydraulic machinery. To create connection into hydraulic lines, the kit comes with a large range of male /swivel female test tees with Minimess® 1620 test points fitted to suit BSP, metric, JIC and ORFS hose and pipework, all with blanking caps and plugs to seal off the lines, if required.
Kit Contains:
Upper Layer (removable tray);
1. Minimess 1620 test point M10x1.25 male
2. Minimess 1620 female to G1/4″ BSP female gauge adaptors (x2)
3. Minimess 1615 female to Minimess 1620 male adaptor (x2)
4. Minimess 1215 female to Minimess 1620 male adaptor (x2)
5. Diagnostic quick release with internal probe (Volvo & Hiab) to Minimess 1620 test point adaptor (x2)
6. Diagnostic quick release with internal probe (Hitachi & Komatsu) to Minimess 1620 test point adaptor
7. Diagnostic flat-faced quick release to Minimess 1620 test point adaptor
8. 5/8″ BSF test plug (JCB) to Minimess 1620 test point adaptor
9. Minimess 1620 test point 1/4″ NPT male
10. Minimess 1620 test point 1/8″ NPT male
11. Minimess 1620 test point M10x1 male
12. Minimess 1620 test point M12x1 male
13. Minimess 1620 test point 9/16″-18 UNF male
14. Minimess 1620 test point 7/16″-20 UNF male
15. Minimess 1620 test point ¼” BSP male
Bottom Layer (fixed tray & case lid):
1. 3/8″ BSP male/swivel female test tee with Minimess 1620 test point. 3/8″ BSP solid plug & cap.
2. 3/4″ BSP male/swivel female test tee with Minimess 1620 test point. ¾” BSP solid plug & cap.
3. 1.1/4″ BSP male/swivel female test tee with Minimess 1620 test point. 1.1/4″ BSP solid plug & cap.
4. 9/16″-18 JIC male/swivel female test tee with Minimess 1620 test point. 9/16″-18 JIC solid plug & cap.
5. 7/8″-14 JIC male/swivel female test tee with Minimess 1620 test point with 7/8″-14 JIC solid plug & cap.
6. 1.5/16″-12 JIC male/swivel female test tee with Minimess 1620 test point. 1.5/16″-12 JIC solid plug & cap.
7. 11/16″-16 ORFS male/swivel female test tee with Minimess 1620 test point. 11/16″-16 ORFS solid plug& cap.
8. 1″-14ORFS male/swivel female test tee with Minimess 1620 test point. 1″-14ORFSsolid plug &cap.
9. 1.7/16″-12 ORFS male/swivel female test tee with Minimess1620 test point. 1.7/16″-12 ORFS solid plug & cap
10. 8S (M16x1.5) male/swivel female test tee with Minimess 1620 test point. 8S (M16x1.5) solid plug& cap.
11. 12S (M20x1.5) male/swivel female test tee with Minimess 1620 test point. 12S (M20x1.5) solid plug& cap.
12. 20S (M30x2) male/swivel female test tee with Minimess 1620 test point. 20S (M30x2) solid plug& cap.
13. 63mm analogue pressure gauge with Minimess 1620 male connection (selectable pressure ranges)
14. 63mm analogue pressure gauge with Minimess 1620 male connection (selectable pressure ranges)
15. 80mm HTE2 series digital pressure gauge with Minimess 1620 male connection (optional extra with selectable pressure ranges)
16. Minimess 1620 test hoses 2.5m long. 630 bar max working pressure (x3)
