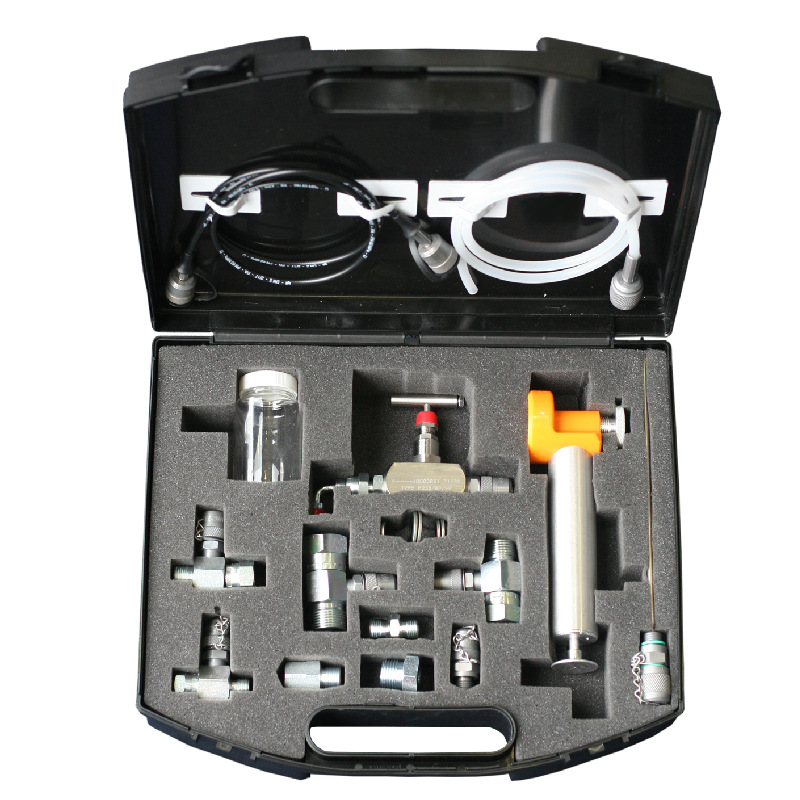

Universal Oil Sampling Kit for Minimess
The universal Minimess® oil sampling kit contains all you need to be able to extract oil samples safely and effortlessly from almost anywhere on your machine or plant.
Kit Contains:
– High pressure 630 bar Minimess® 1620 sampling hose: 1.5m long
– Vacuum Minimess® 1604 sampling hose: 1.5m long
– 100ml plastic oil sampling bottle
– 690 bar (10,000psi) rated oil sampling tap with Minimess® 1620 hose connection
– Vacuum thief pump for tank/gearbox oil sampling via Minimess® 1604 sampling probe & vacuum hose
– 1/4″, 3/8″ & 1/2″ bonded sealing washers
– 1/4″ BSP male/swivel female Minimess® 1620 sampling point tee adaptor
– 3/8″ BSP male/swivel female Minimess® 1620 sampling point adaptor
– 1/2″ BSP male/swivel female Minimess® 1620 sampling point adaptor
– 3/4″ BSP male/swivel female Minimess® 1620 sampling point adaptor
– Minimess® 1620 sampling point to 1/4″ BSP male thread with captive seal
– 1/4″ BSP female to 3/8″ BSP male thread adaptor
– 1/4″ BSP female to 1/2″ BSP male thread adaptor
– Minimess® 1604 sampling point with 6″ (150mm) long sampling probe
– 1/4″ BSP male screw-in thread with captive seal
