Minimess® gas charging kit for charging accumulators with Nitrogen or to check or reduce existing pre-charge pressure in accumulators.
Feautres:
– 1087-HYDRO device suitable for up to 300 bar operation.
– Connect & disconnect under full system pressure.
– Lifetime leak-free guarantee.
– Minimess test points offer excellent system access versatility.
– Simple hand-tightening hose connection to accumulator charging device.
– User can charge or test pressure away from the accumulator.

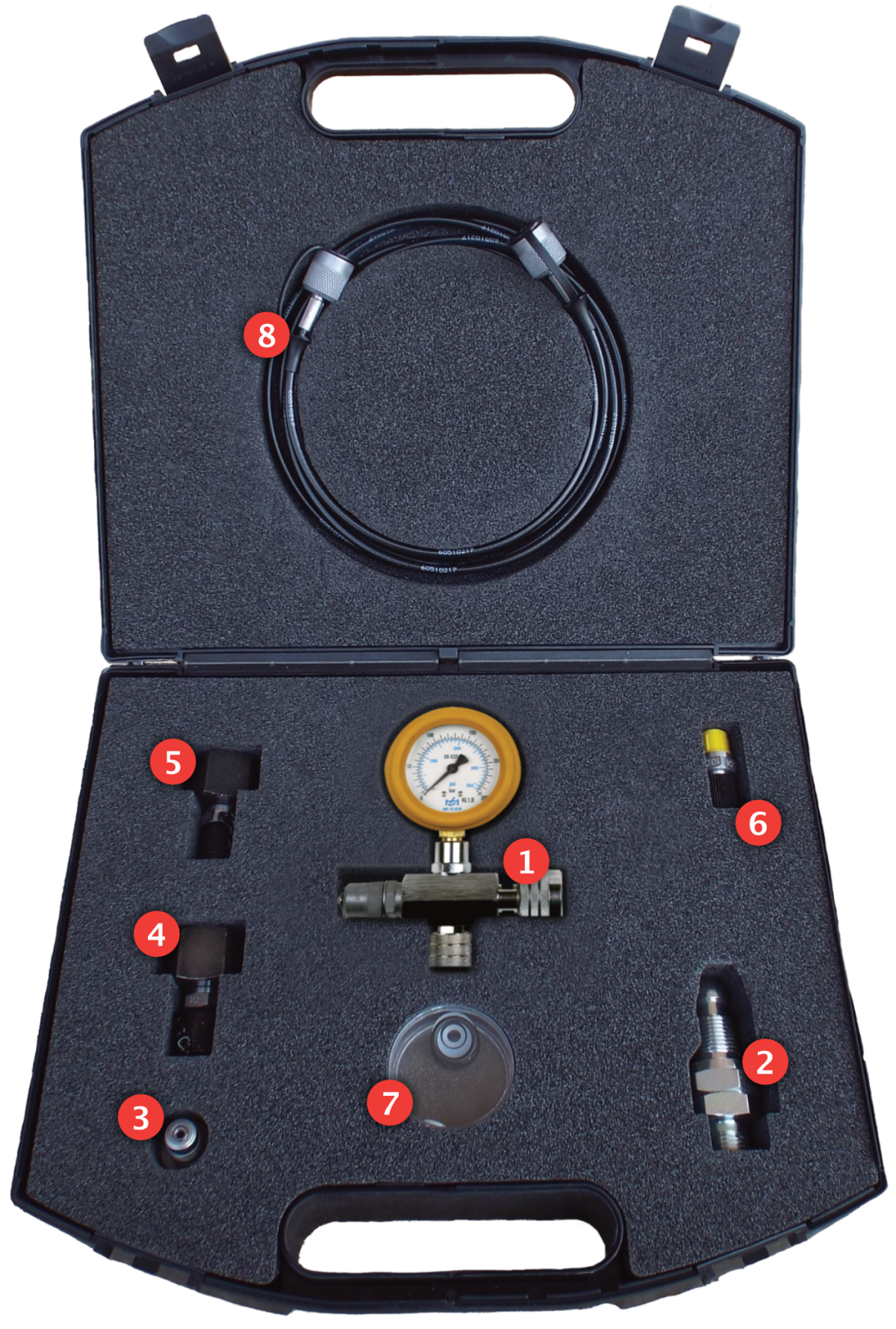

Kit Contents:
1. 1087-HYDRO charging & testing device with W24,32×1/14″ female bottle connection to Minimess 1620 charging hose connection. 0…250 bar pressure gauge.
2. HT-236376 W24,32×1/14″ male to 5/8″ BSP male bullnose adaptor for UK N2 cylinders.
3. 5414-02-10.00N Minimess 1615 to VG8 or 5/16″-32 UNEF Schrader valve adaptor.
4. 2446-16-30.00 Minimess 1615 to 7/8″-14 UNF accumulator valve adaptor (permanent adaptor, requires removal of the original valve).
5. 2446-18-30.00 Minimess 1615 to M28x1.5 accumulator valve adaptor (permanent adaptor, requires removal of original valve).
6. 2402-01-18.00 Minimess 1615 to 1/4″ BSP male charging valve.
7. Seal Set.
8. S100-AC-AC-02.50 Minimess 1620 charging & testing hose, 400 bar max, 2.5m long.*
*Any hose lengths available upon request.
