Braided metal hose assemblies play a vital role in a wide range of industrial applications, offering flexibility, durability and resistance to pressure, temperature and corrosion. At Hoses Direct, we supply custom-built assemblies tailored to meet the specific requirements of each customer.
Whether you’re dealing with demanding conditions or tight space constraints, a well-designed braided metal hose assembly can deliver long-lasting, safe and efficient performance.
To begin, we’ll explain what a braided metal hose assembly is and why its construction is key to performance and reliability.
What Is a Braided Metal Hose Assembly?
A braided metal hose assembly is a flexible conduit typically constructed from a thin-walled corrugated stainless steel core surrounded by one or more layers of wire braid. The corrugated core provides the hose with its flexibility, while the braid reinforces the assembly and contains internal pressure. This combination allows the hose to accommodate vibration, thermal expansion, and movement while maintaining strength under pressure.
The braid, usually made from stainless steel, prevents the core from elongating under pressure and improves overall mechanical durability. The materials and construction method make these assemblies suitable for environments where standard rubber or plastic hoses would fail, particularly in applications involving heat, chemicals or mechanical stress.
Why Choose a Custom Metal Hose Assembly?
Standard hose assemblies are often built to general specifications, but they don’t always match the exact demands of a particular system. Choosing a custom metal hose assembly allows engineers to specify materials, fittings and performance characteristics that align precisely with their operational requirements. This results in improved reliability, longer service life and fewer maintenance issues.
Custom assemblies are particularly valuable in challenging environments. For example, systems exposed to high temperatures may require specific alloys with better heat resistance. Applications involving aggressive chemicals may call for enhanced corrosion protection. Where space is limited or movement is a factor, flexibility and the correct bend radius become critical.
At Hoses Direct, we build custom assemblies to meet these conditions, offering options that suit everything from static plant connections to dynamic machinery installations.
Use Cases for Custom Braided Metal Hose Assemblies
Custom braided metal hose assemblies are used across a wide range of sectors where reliability and safety are essential. In manufacturing, they are often installed to absorb vibration or connect machinery that moves or cycles under load. Utility companies rely on them for high-pressure connections in steam, water and gas systems where temperature and pressure can fluctuate.
In waste management and chemical processing, the ability to handle corrosive fluids and prevent leaks is critical. Custom assemblies built with the right materials and fittings provide this assurance. Construction sites use these hoses for compressed air, hydraulic systems and temporary plant connections, where robust and flexible hose routing is required in confined or shifting spaces.
We’ve also supported transport and logistics operations, particularly with fuel and exhaust systems, where a combination of temperature tolerance, vibration resistance and compact routing is needed.
Components of a Custom Stainless Steel Braided Hose

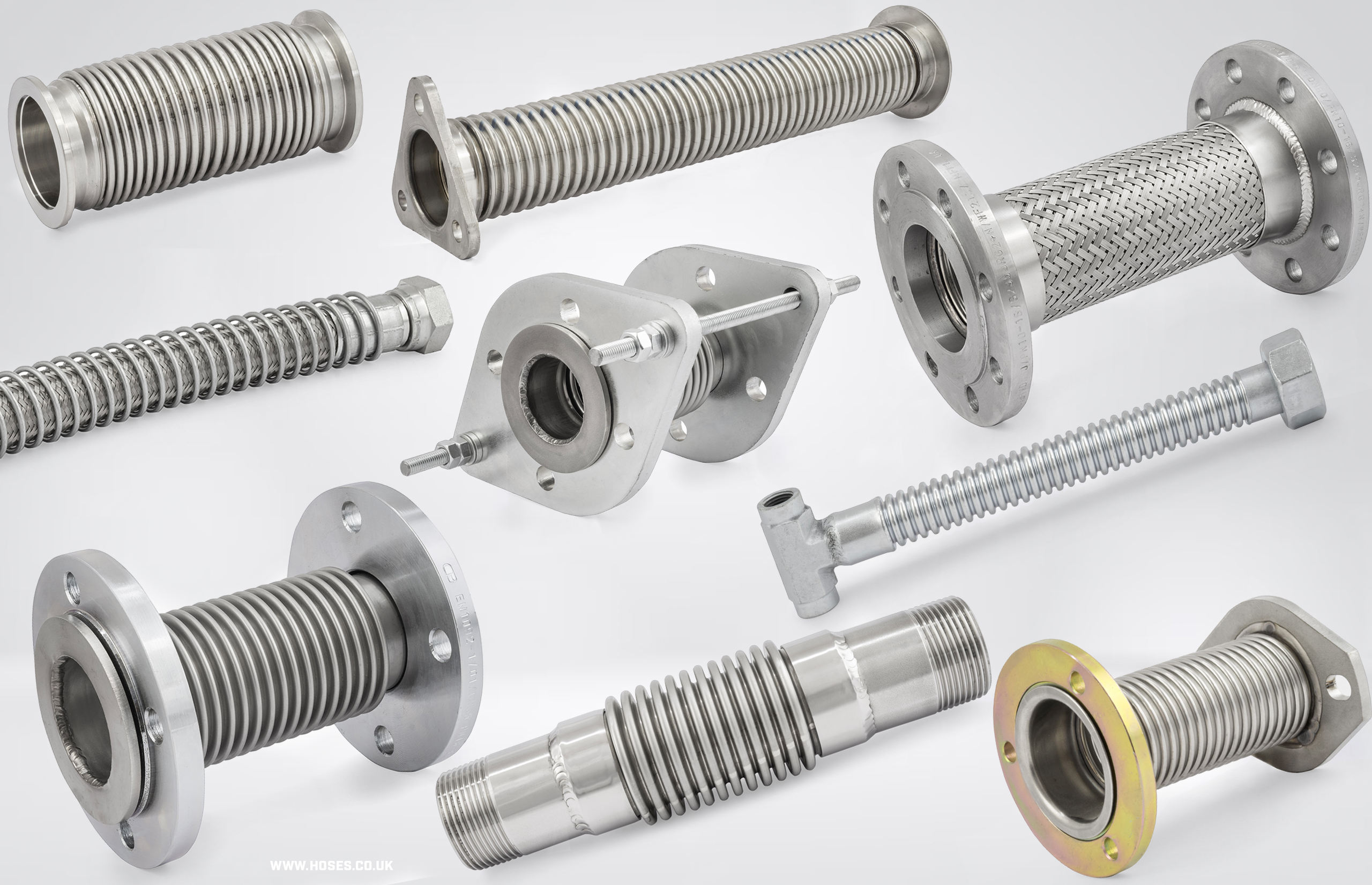

A custom stainless steel braided hose assembly is made up of several engineered components, each selected to match the specific demands of the application. The core of the hose is typically a thin-walled, helically or annularly corrugated tube. This core provides the necessary flexibility and allows for movement, vibration absorption, and pressure containment. Common materials include 316 and 321 stainless steel, although other alloys may be specified depending on chemical compatibility and temperature requirements.
The outer braid layer is added to contain internal pressure and reinforce the structure of the hose. This braid is usually manufactured from stainless steel wire and may be applied in a single or double layer, depending on the required pressure rating. The braid also helps maintain the shape of the hose under pressure while allowing it to flex as needed.
End fittings and collars are then welded to the hose ends. These components ensure secure, leak-free connections to other equipment. Options include BSP and NPT threads, fixed or swivel flanges, and a range of specialist fittings for different industry standards, depending on the requirements of your application.
Engineering Considerations (STAMPED Selection Guide)
Designing a braided metal hose assembly begins with accurately defining the application requirements, using the STAMPED method: Size, Temperature, Application, Media, Pressure, Ends and Delivery. Each factor influences the choice of materials, construction, and fittings.
Size involves both the internal and external diameters, which affect flow rates and compatibility with surrounding equipment. Temperature must account for both media and ambient conditions, as elevated heat can reduce pressure capacity and affect material integrity. Application refers to how the hose will be used, whether static, flexing, or subject to vibration, and determines the appropriate braid strength and bend radius.
Media refers to the fluid or gas being conveyed. Some chemicals require specific alloys or internal liners to prevent corrosion or contamination. Pressure ratings must consider not only the system’s operating pressure but also safety margins for transient spikes. The choice of end fittings must match connection standards and account for any installation constraints.
Finally, delivery includes the overall hose length, tolerances, and any packaging or testing requirements prior to dispatch.
With these factors defined, a hose can be specified to operate reliably within its intended environment.
Customisation Options from Hoses Direct UK
At Hoses Direct, we provide a wide range of customisation options to ensure each braided metal hose assembly matches the precise requirements of your system.
Customers can choose from various core materials, including 316L and 321 stainless steel, as well as special alloys for more demanding chemical or thermal environments. Assemblies can be manufactured in virtually any length, with single or double braid layers depending on the required pressure rating.
A full range of end fittings is available, including BSP, NPT, flanged, and quick-release options. We also offer both fixed and swivel variants to accommodate installation and service needs. All assemblies are fabricated in line with relevant standards and pressure tested to confirm performance. Test certification can be provided on request, along with full quality control documentation where needed.
Lead times are kept to a minimum through in-house assembly and a streamlined quotation process. Our technical team works closely with each customer to ensure that specifications are clearly understood and accurately met.
Why Hoses Direct Should Be Your Supplier of Choice
Hoses Direct is trusted by engineers and procurement teams across the UK for supplying high-quality braided metal hose assemblies built to specification. Our combination of technical expertise, fast turnaround times and competitive pricing makes us a reliable choice for businesses needing dependable supply and support.
We understand that unplanned downtime is costly, which is why we prioritise efficiency without compromising quality.
Many of our customers return to us for repeat orders because they know we understand their requirements and deliver consistently. We’ve supplied custom assemblies for manufacturing plants, construction projects and utility infrastructure, all tailored to the working conditions and performance demands of each site.
Our customer support doesn’t end at the point of sale. We offer guidance throughout the specification process, and our team remains available to assist with any technical queries post-installation. Whether you’re looking to scale up purchasing across multiple sites or need a one-off solution, we’re equipped to meet your needs.
Summary
Custom braided metal hose assemblies offer the flexibility, durability and precision required for demanding industrial environments. By tailoring each assembly to the exact needs of the application, you reduce risk, extend service life and improve overall system performance. Whether it’s high pressure, extreme temperature or tight installation space, a properly specified hose makes all the difference.
At Hoses Direct, we combine technical experience with efficient service to deliver assemblies you can rely on. From material selection to pressure testing, every part of the process is handled with care and attention to detail. We support both one-off builds and repeat supply contracts, always aiming to make the experience straightforward and dependable.
If you need a custom braided metal hose assembly, speak to one of our engineers today. Call us directly or request a quote through our website to get expert advice and a fast turnaround.
